Ultimate Guide to Bathroom Subfloor Waterproofing

Bathroom subfloor waterproofing is essential to prevent water damage, mold growth, and costly repairs. Here's what you need to know:

• Why It Matters: Stops water from weakening your bathroom's structure and prevents health risks like mold.
• Key Goals:
  • Moisture Resistance: Blocks water from reaching the subfloor.
  • Structural Durability: Prevents wood rot and metal corrosion.
  • Long-Term Performance: Reduces repairs and maintains home value.
• Who Needs It: Ideal for new builds, renovations, humid climates, or high-traffic bathrooms.

Materials You’ll Need:

1. Waterproof Membranes: Options like liquid-applied, sheet, or self-adhesive membranes.
2. Subfloor Materials: MGO boards (high moisture resistance) or marine-grade plywood.
3. Sealants & Adhesives: Silicone sealants and waterproof adhesives for long-lasting bonds.

Preparation Steps:

1. Inspect & Test: Check for damage or moisture issues.
2. Clean: Remove dust and debris.
3. Prime & Seal: Apply primers and sealants for better waterproofing adhesion.

Installation Tips:

• Use membranes to cover the subfloor.
• Seal critical areas like corners and around plumbing fixtures.
• Ensure proper drainage with sloped floors and efficient drains.

Maintenance:

• Inspect monthly for water stains, mold, or damaged grout.
• Control humidity with exhaust fans and proper ventilation.
• Reseal grout and caulk every 1–2 years.

Quick Fact: Subfloor installation costs range from $8.27 to $16.12 per square foot, including labor and materials.

Waterproofing protects your bathroom from hidden issues and extends its lifespan. For professional help, consider consulting local experts like Elephant Floors in the SF Bay Area.

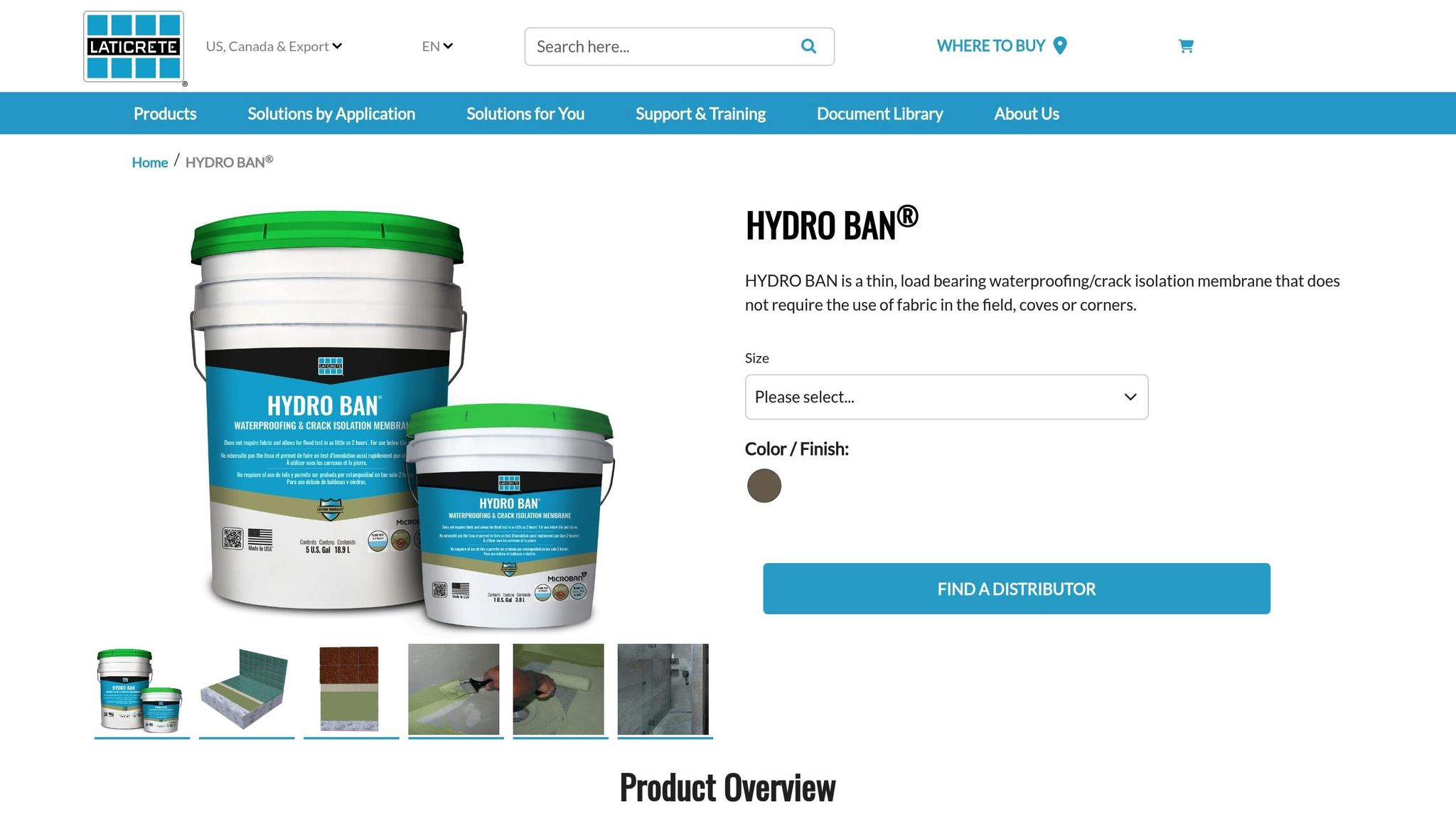

How to Waterproof Bathroom Floors...Hydro Ban Method -- by Home Repair Tutor

Materials for Subfloor Waterproofing

Choosing the right materials for subfloor waterproofing is essential to protect your bathroom from moisture damage. By understanding the available options, you can make decisions that ensure durability and prevent costly repairs.

Waterproof Membranes

Waterproof membranes act as the first line of defense, creating a barrier between water and your subfloor. Each type offers unique benefits depending on the layout and specific needs of your bathroom.

• Liquid-applied membranes are ideal for irregular surfaces. They form a seamless barrier, making them especially effective in tricky areas like shower niches, corners, and around pipe penetrations.
• Sheet membranes (made from PVC, rubber, or bitumen) are great for flat surfaces, providing consistent thickness. However, they require careful seam sealing to prevent leaks.
• Self-adhesive membranes simplify installation with their peel-and-stick backing, eliminating the need for separate adhesives. These are perfect for DIY projects or quick renovations, especially in foundations and wet areas.
• Polyethylene membranes are highly durable and moisture-resistant, making them a popular choice for areas like bathrooms, showers, and kitchens.
• Cementitious coatings bond well with concrete and are easy to apply, making them another reliable option for wet areas.

When selecting a membrane, consider factors like the type of tile you'll use, the specific area you're waterproofing, your subfloor material, and your level of experience with installation. The waterproofing membrane market is expected to grow significantly, with projections showing an increase from $28.05 billion in 2021 to $42.85 billion by 2028, at an annual growth rate of 6.2%.

After choosing a membrane, pair it with the right subfloor material to ensure long-lasting performance.

Subfloor Options

The durability of your waterproofing system heavily depends on the subfloor material. Modern options are better equipped to handle moisture than traditional choices.

• MGO (Magnesium Oxide) boards are highly resistant to moisture, making them excellent for bathrooms. Unlike plywood, they don’t swell, warp, or degrade when exposed to water. Tests show MGO boards maintain their strength even after repeated wetting and drying cycles, absorbing just 4–11% moisture in environments with 75% relative humidity.
• Moisture-resistant plywood, such as marine-grade plywood, can work well when properly treated and sealed. However, it still requires additional waterproofing measures to handle bathroom conditions.

Material	Cost per sq ft	Water Absorption	Fire Resistance	Lifespan in Wet Areas
MGO Board	$1.50 – $3.50	4–11% at 75% humidity	Up to 4 hours	Longer
Standard Plywood	$0.50 – $1.00	High absorption rate	1 hour maximum	Shorter

Choosing the right subfloor sets the foundation for an effective waterproofing system. The next step is to secure everything with proper sealants and adhesives.

Sealants and Adhesives

Sealants and adhesives play a critical role in completing your waterproofing system. They prevent water from seeping into gaps and ensure strong, durable bonds.

"Sealants are primarily used to seal joints or gaps between surfaces, preventing the penetration of water, air, dust, or other substances."
– Sika New Zealand

• Sealants are flexible, making them perfect for areas that experience temperature changes or structural movement. This flexibility is key in bathrooms, where rigid connections might fail over time.
• Adhesives provide strong, permanent bonds between surfaces. Waterproof adhesives designed for humid environments maintain their strength even under constant exposure to moisture, with lap shear strengths often exceeding 1,000 psi.

"Adhesives are substances used to bond two or more surfaces together by creating a strong, permanent attachment."
– Sika New Zealand

For bathroom applications, silicone sealants are a popular choice:

• Acetoxy silicone offers excellent mold resistance and works well for glass-to-glass joints.
• Neutral cure silicone is better suited for untreated metals and natural stone, making it a versatile option for various bathroom materials.

Additionally, unmodified thin-set mortar is often paired with specific membranes to ensure long-term adhesion. Using the wrong adhesive can compromise the membrane’s effectiveness and void warranties.

When selecting sealants and adhesives, ensure compatibility with your materials, account for expected movement, and consider environmental conditions. Always start with structurally sound, clean, and dry surfaces, and follow the manufacturer’s instructions for the best results. For expert advice and installation, companies like Elephant Floors offer professional waterproofing services across the SF Bay Area.

How to Prepare for Waterproofing

Proper preparation is key to ensuring your waterproofing system works effectively, protecting against damage, avoiding expensive repairs, and maintaining the moisture resistance and structural integrity discussed earlier. By carefully inspecting, cleaning, and priming your subfloor, you set the stage for a durable and reliable waterproofing solution.

Inspecting and Testing the Surface

Begin with a visual check of the surface to identify any issues that could affect your waterproofing. Look for signs like moisture damage, rot, loose fasteners, uneven surfaces, termite activity, cracks, gaps, or sagging areas. Pay special attention to areas near plumbing fixtures, as these spots are most vulnerable to water exposure.

Moisture testing is a step you can’t afford to skip. Different subfloor materials require specific testing approaches to get accurate results:

Subfloor Type	Testing Method	Maximum Moisture Level
Concrete	RH surface-mounted insulated hood test	70% RH
Concrete	RH in-situ probe test	75% RH
Timber	MC test in timber	10–14% MC (cypress: 10–15%)

For concrete subfloors, conduct at least three moisture tests for the first 1,076 sq ft of floor area, adding one test for every additional 1,076 sq ft. Be thorough in your documentation - record the job site address, subfloor type, test locations, moisture and pH readings, temperature, and the equipment used.

Keep in mind that moisture tests only provide readings for that specific moment, and conditions can change over time. If you notice any structural issues, address them before moving forward. For example, hammer down any nails sticking out to create a flat surface.

Once you've confirmed the surface is defect-free and documented everything, it’s time to clean the subfloor.

Cleaning the Subfloor

A clean subfloor is critical for the waterproofing materials to adhere properly. Dust, debris, or other contaminants can compromise the bond between membranes and adhesives. Start by clearing away all loose debris, then sweep thoroughly and use a damp sponge to eliminate any remaining dust.

For wood subfloors, stick to gentle cleaning methods and ensure the surface is completely dry before proceeding. Run your hand over the surface to confirm it’s smooth and free of residue, creating the best conditions for mortar adhesion.

With the subfloor spotless, you’re ready to move on to priming and sealing.

Priming and Sealing

Priming prepares the subfloor for better adhesion. The type of primer you need will depend on the material of your subfloor and the waterproofing system you’re using.

For concrete subfloors, penetrating primers are often recommended. These primers seal the surface and reduce porosity, which helps prevent the concrete from drawing moisture out of the adhesive too quickly. Apply the primer evenly, following the manufacturer’s instructions.

Wood subfloors may require a different primer depending on the type of wood and its moisture content. Some waterproofing systems specify particular primers to ensure compatibility with their membranes and adhesives.

Once the primer is applied, allow adequate curing time - usually between 2 and 24 hours - before continuing. Keep in mind that temperature and humidity can affect curing times, so plan your schedule accordingly. Once the primer has cured completely and shows a uniform appearance with proper adhesion, your subfloor is ready for the waterproofing installation.

If your project feels too complex or you’re unsure about any part of the process, Elephant Floors provides professional waterproofing services throughout the SF Bay Area, ensuring your subfloor is expertly prepared for the best results.

Bathroom Subfloor Waterproofing Installation Methods

With your subfloor prepped and ready, the next step is to install the waterproofing system. This stage demands precision since even minor errors can lead to water damage over time. Waterproofing is a detailed process with plenty of opportunities for mistakes.

Installing Waterproof Membranes

There are four main types of waterproof membranes - sheet, liquid, foam wallboards, and foam shower bases. Each requires careful, precise installation.

Sheet membranes are made from plastic compounds and often come with "peel and stick" technology. To install, pre-cut the sheets to size, marking locations for shower fixtures. Overlap the membrane pieces by at least 2 inches to prevent water from seeping through the seams. Lightly moisten the surface before applying the adhesive to ensure a strong bond.

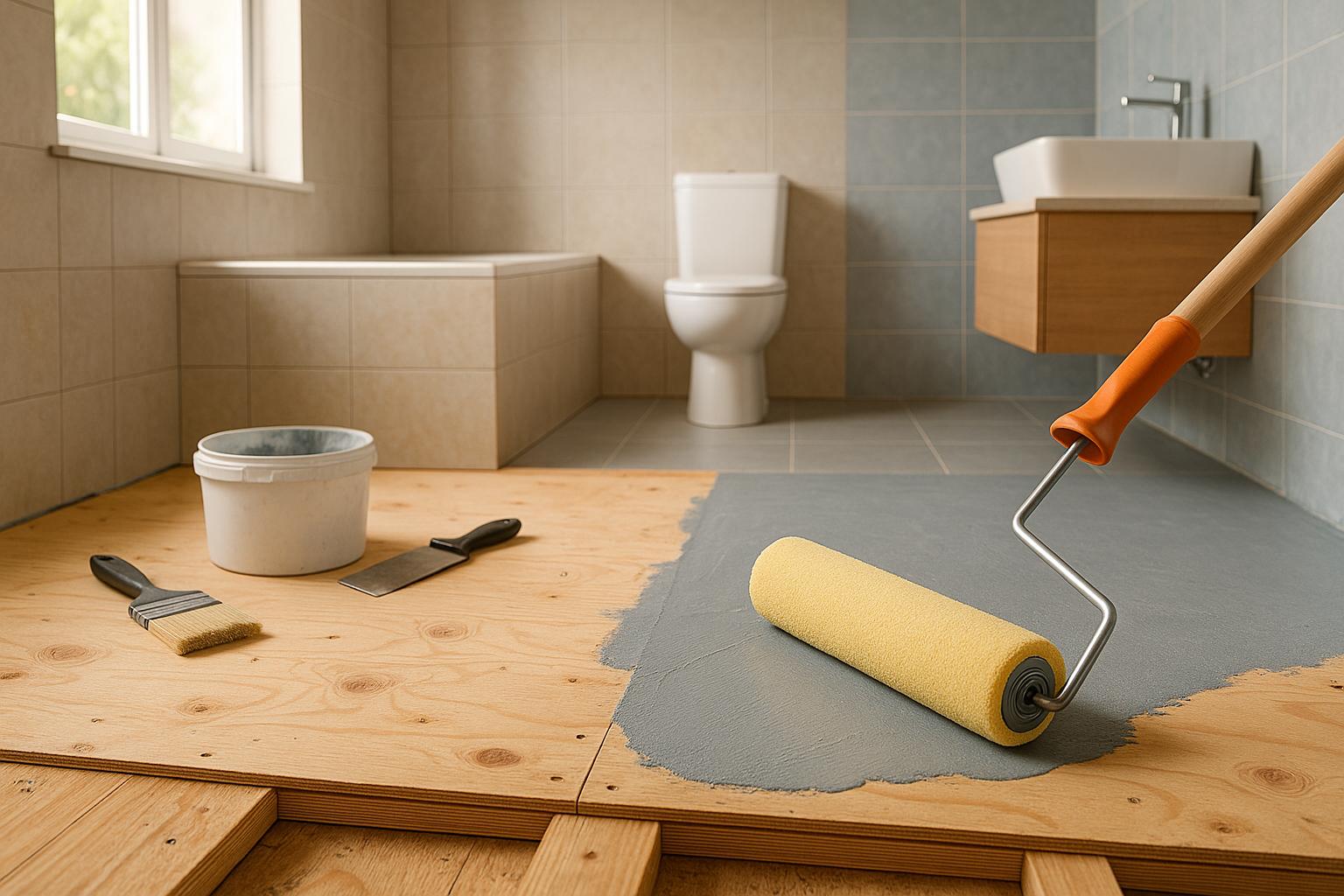

Liquid membranes are applied like paint, forming a flexible, rubber-like barrier. According to Rise, RedGard is a popular choice for quick shower waterproofing. Apply at least two coats, allowing 24 hours between each for proper curing.

Proper drainage integration is crucial during membrane installation. The membrane must conform to the floor's slope without trapping air pockets or creating wrinkles that could hold water.

After installation, let the membrane cure as directed. Once cured, inspect the surface for any imperfections and perform a water test to confirm the system's integrity.

With the membranes in place, the next focus is sealing vulnerable areas.

Sealing Critical Areas

Certain areas are more prone to water damage and need extra attention. These include corners, seams, tub flanges, tub spouts, shower valves, shower head arms, toilet flanges, and the joints where walls meet floors.

Using a sealant is one of the most effective ways to waterproof these areas. In September 2023, Bathroom Remodeling Teacher recommended Hydro-Blok board and joint sealant for its flexibility and ability to bond with thinset while providing long-lasting protection.

For plumbing fittings, apply wall sleeves to seal pipes and fittings that pass through walls or floors. Before applying the sleeves, make sure the surfaces are clean and free of plaster or gypsum residue. Use a spatula or squeegee to press out air bubbles and wrinkles during application.

When sealing around the tub, use caulk or sealant along all edges where the tub meets walls or floors. Apply a pipe seal around the tub spout to block water from entering the wall cavity. For shower installations, thoroughly seal inner corners, even the smallest cracks, and areas around shower valves and the shower head arm.

Extend waterproofing and tiling slightly beyond the tub area for added protection. To achieve clean, straight lines, use masking tape along edges before applying sealant. Easy Drain stresses the importance of proper installation, stating:

"Most moisture related damages result from an improper installation of liquid sealed sealing membranes, wall-to-floor transfers, and drainage systems".

Seal the seams between splash guards and walls around sinks to prevent water intrusion. For screw holes in wall waterproofing membranes, pre-fill them with silicone before installing anchors, and add a second coat of silicone around the screw hole after the anchor is in place.

Recheck the surface for gaps or imperfections after sealing to ensure a watertight finish.

Adding Drainage Systems

Once membranes and sealants are in place, the next step is to install an effective drainage system.

Proper drainage is essential for any wet room or bathroom. The drainage system works hand-in-hand with floor slopes and waterproofing to keep the space dry and functional.

A well-designed system typically includes either a linear or square drain installed directly into the floor. Depending on your plumbing setup, these drains can have vertical or horizontal outlets. Horizontal drains are the standard choice, but vertical drains may be necessary for older buildings or spaces with limited plumbing options.

Fast-flow drains installed at the lowest point of the floor slope ensure water flows efficiently, preventing pooling and standing water. The floor gradient must direct water toward the drain, which helps maintain a dry and hygienic environment.

When installing a shower pan, align it carefully with the drain location to ensure proper water flow. Make sure the subfloor is level before placing the shower pan, and secure the drain flange tightly to avoid leaks.

Improper slope design, poor drain placement, or inadequate sealing can lead to costly issues like water leaks, mold, or floor damage. For complex installations, hiring a professional plumber or wet room specialist is often the best choice. Once installed, clean the drains regularly to prevent blockages and maintain smooth water flow.

To reduce slipping hazards, choose tiles with high slip resistance around drains. By combining proper floor gradients, efficient drainage, and thorough waterproofing, you create a system that ensures long-term durability and safety.

For those tackling a major bathroom renovation in the SF Bay Area, Elephant Floors can connect you with skilled professionals who specialize in integrating waterproofing systems with quality flooring installations.

sbb-itb-c3e9a17

Maintenance and Long-Term Care

Even the most carefully installed waterproofing will need some attention over time to keep it working properly. Regular upkeep helps catch small problems early and keeps your waterproofing effective for years to come.

Regular Inspections

Make it a habit to visually inspect your bathroom every month for early signs of waterproofing trouble. Watch for water stains, mold, peeling paint, or damaged grout and caulk around fixtures like sinks, showers, and bathtubs. Pay extra attention to areas near windows, doors, and plumbing fixtures.

Check for soft spots, discoloration, or musty smells that could indicate hidden moisture. Floor issues like bulging, warping, or staining might also signal that the waterproofing membrane has been compromised.

Task	Frequency	Time Needed (Minutes)
Check for Water Stains	Monthly	10
Inspect Grout and Caulk	Quarterly	15
Test Exhaust Fan	Quarterly	5
Look for Mold/Mildew	Monthly	10
Inspect Fixture Seals	Bi-Annually	20
Examine Paint/Wallpaper	Quarterly	10

Keep detailed records of your maintenance activities, noting dates, materials used, and areas addressed. This helps track patterns and ensures you stay consistent with inspections and repairs.

Humidity and Moisture Control

Managing humidity in your bathroom is key to protecting your waterproofing system. Aim to keep indoor humidity levels between 40% and 50% to avoid mold growth and damage. High humidity can weaken even the most reliable waterproofing over time.

Run your exhaust fan for 20–30 minutes after showering. Make sure the fan is powerful enough for your bathroom’s size and test it regularly to ensure it’s working properly. Open windows during and after showers for better ventilation, and leave the bathroom door slightly open to improve airflow throughout your home.

Drying wet surfaces is another simple but effective step. Use a squeegee to clear water from shower walls and mirrors, which helps minimize moisture buildup. If you live in a humid area, consider using a dehumidifier or adding moisture-absorbing plants like peace lilies, Boston ferns, or orchids.

Shorter, cooler showers can also reduce steam. Hang damp towels and clothes outside the bathroom, and fix plumbing leaks quickly - small drips can add unnecessary moisture to the air.

Grout and Sealant Maintenance

Grout and sealants are often the weakest links in your waterproofing system, so maintaining them is crucial. Check for cracks, gaps, or wear every three months. Reapply sealant every 1–2 years, or whenever water stops beading on grout lines, to keep water from seeping through.

Before resealing, clean the grout with a gentle cleaner and a stiff brush to ensure the new sealant adheres properly. Let the area dry completely - 24 to 48 hours is ideal - before applying the new sealant. Skipping this step can lead to poor adhesion and early failure.

"To maintain pristine-looking grout, remember to remove spills promptly, change mop water frequently, and clean grout joints regularly." – MAPEI Product Support

Test the new sealer on a small, hidden spot to make sure it works well before applying it to the entire area. Use tools like applicator brushes or rollers designed for grout sealing, and wipe away any excess to avoid a hazy finish that can trap dirt and moisture.

"Grout sealing is how you protect your grout from outside forces and keep it durable." – Tile Doctor

Avoid using harsh cleaning chemicals that can wear down the sealant over time, and clean up spills quickly to keep grout looking its best.

For homeowners in the SF Bay Area planning a bathroom renovation or dealing with waterproofing concerns, Elephant Floors offers expert advice on flooring solutions that pair perfectly with a well-maintained waterproofing system.

Conclusion

Waterproofing your bathroom subfloor isn’t just about avoiding water damage - it’s about protecting your home’s structure from costly repairs, mold, and potential health issues. A well-executed waterproofing system can save you a significant amount of money in the long run by preventing major structural problems.

To ensure lasting results, focus on three key elements: selecting the right materials, thorough preparation, and regular maintenance. As Mike Holmes from Make It Right® wisely puts it:

"It is not the tiles and countertops that matter in your bathroom, it is everything UNDERNEATH and BEHIND your finishes that you should focus on".

This mindset is crucial for a successful waterproofing project. Prioritizing the unseen layers of your bathroom ensures durability and long-term performance.

Investing in high-quality materials is non-negotiable. Waterproof membranes, exterior-grade plywood or cement board subfloors, and sealants specifically designed for bathroom use are key to creating a system that can withstand high-moisture conditions. While the initial cost might feel steep - subfloor installation typically ranges from $8.27 to $16.12 per square foot, including labor and materials - this upfront investment is far more affordable than addressing water damage down the road.

Preparation is another critical step. Ensuring surfaces are clean, dry, and properly primed allows waterproofing materials to adhere effectively and perform as intended. Skipping this step can lead to system failure, requiring costly reinstallation.

Maintenance is your long-term insurance. Pay close attention to areas where vertical and horizontal surfaces meet, as these are common points of failure. Regular inspections, proper ventilation, and addressing worn sealants or grout promptly can significantly extend the life of your waterproofing system. For instance, running an exhaust fan for 30 minutes after a shower and fixing leaks immediately can prevent moisture issues from escalating.

If you’re planning a bathroom renovation in the SF Bay Area, Elephant Floors offers expert advice to help you choose flooring solutions that align with a properly waterproofed subfloor. Their Sunnyvale showroom provides personalized guidance to ensure your materials work seamlessly with your waterproofing system.

FAQs

What’s the difference between liquid-applied and sheet waterproof membranes, and how do I pick the best one for my bathroom?

Liquid-Applied vs. Sheet Waterproof Membranes

When it comes to protecting your bathroom subfloor, liquid-applied membranes and sheet membranes are two reliable options, each with its own strengths.

Liquid-applied membranes are applied using a brush, roller, or sprayer, forming a seamless, watertight barrier. This makes them an excellent choice for bathrooms with irregular layouts, tricky corners, or multiple fixtures. While they require careful application for maximum effectiveness, they excel at preventing leaks in more complex setups.

In contrast, sheet membranes are pre-manufactured and offer consistent thickness, which simplifies installation on flat, straightforward surfaces. However, sealing the seams and overlaps properly is essential to ensure no water seeps through.

Choosing between the two depends on your bathroom's specific layout and requirements. If your space has a lot of corners or fixtures, a liquid-applied membrane might be the better fit. For simpler designs, sheet membranes can save both time and effort. Other factors to consider include the type of subfloor, the level of water exposure, and your comfort with the installation process.

Need help deciding? Visit Elephant Floors in Sunnyvale. Their knowledgeable team can help you pick the best waterproofing solution and provide premium flooring materials for your project.

What are the best ways to maintain my bathroom's waterproofing system and keep it effective over time?

How to Maintain Your Bathroom's Waterproofing System

Keeping your bathroom's waterproofing system in good shape starts with regular checkups. Look out for visible problems like cracks, tears, or blisters in the waterproofing membrane. Also, keep an eye out for signs of water trouble, such as mold, mildew, or damp spots. If you spot any of these issues, address them right away to avoid bigger headaches later.

Make it a habit to clean the waterproofed areas every so often. Use cleaning products that the manufacturer recommends - this helps ensure you won't accidentally harm the membrane. On top of that, consider scheduling professional inspections once a year or after extreme weather events. Experts can spot hidden problems that might otherwise go unnoticed.

By staying on top of these tasks, you’ll not only extend the life of your waterproofing system but also save yourself from expensive repairs in the future.

What mistakes should I avoid when waterproofing a bathroom subfloor?

To make sure your bathroom subfloor waterproofing holds up over time, steer clear of these common pitfalls:

• Skipping proper subfloor prep: Before you begin, check that the subfloor is solid, level, and free of any flaws. Even minor weaknesses can compromise the entire waterproofing system.
• Choosing the wrong materials: Stick with products designed specifically for waterproofing, and ensure the drain base is compatible with your plumbing setup. Using mismatched or unsuitable materials can lead to leaks and failure.
• Overlooking drainage details: Don’t forget to protect weep holes and pre-slope the floor before applying the waterproofing layer. This step is crucial for preventing water from pooling and ensuring it drains properly.
• Relying on water-resistant materials: Water-resistant wallboard might seem like a good idea, but it can still let moisture seep through over time. Opt for waterproof materials instead.

By avoiding these mistakes, you’ll be setting up your bathroom subfloor to handle daily wear and tear without any water-related headaches.
